Infrastructure

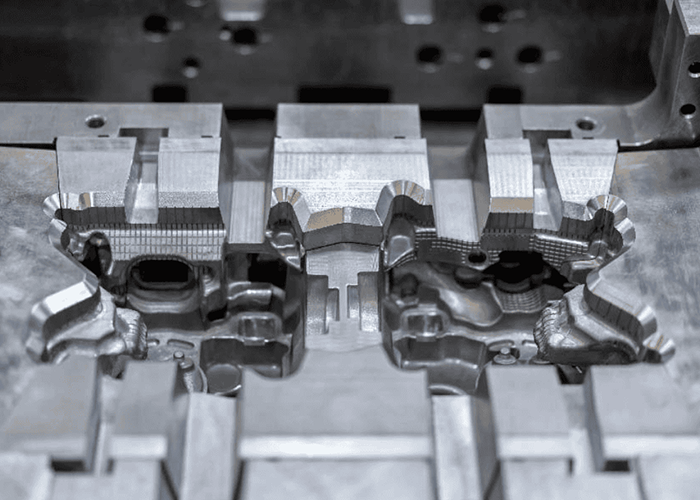

• Hand Molding by Continuous Sand Mixer
• Molding Process: Molding By 2-Part Phenolic Resin sand and Continuous Sand mixer
• Sand Mixer Capacity: 20 Ton/Hr (FMS, UK Make) (Qty : 2 Nos.)
• Compaction Table: Suitable to handle 7 ft x 7 ft Mold Box (Qty : 2 Nos.)
• Roller Track Available to Handle Mold box post molding and pre molding.
• Core making Process: 2 Part Phenolic Resin Process
• Mould Handling with 30 Ton (2 Nos.), 15 Ton (2 Nos.), 10 Ton (2 Nos.), 5 Ton (3 Nos.) Overhead Crane

• Type of Furnace & Capacity Make
• Induction Melting Dual Trak Furnace 1500 KW Inductotherm
• Hydraulic Lift type Crucible 3,000 Kg Inductotherm make
• Hydraulic Lift type Crucible 10,000 Kg Inductotherm make

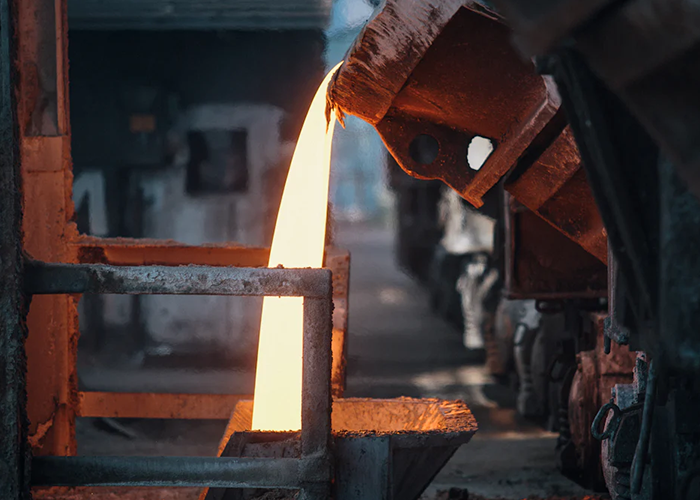

Type of Ladle for Metal Handling

• 1 Ton Tea-Spout Ladle - 1 Qty.
• 3 Ton Tea-Spout Ladle - 2 Qty.
• 7 Ton Tea-Spout Ladle - 1 Qty.
• 10 Ton Tea-Spout Ladle - 1 Qty.

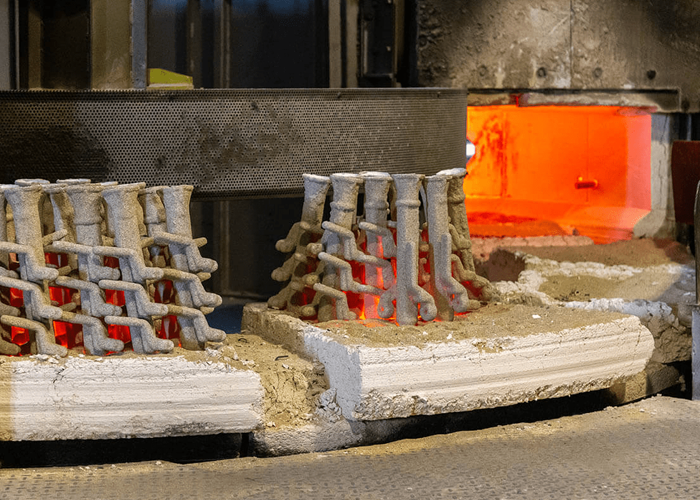

• 2200 mm x 2500 mm - 40HP Shake out Machine
• 10 Tons/ Hour Sand Reclamation Plant (Fully Automatic with Sensor & PLC Control)
• Job Handling by Crane 10 Ton - 2 Nos.
• Pneumatic Chisel 2 Nos.
• Swing Grinder 16” - 7 Nos.
• Portable Flexible Shaft Grinder 1.5 HP - 7 Nos.
• Heat Treatment Furnace (12 Ft x 10 Ft x 6 Ft - Oil Fired) - 1 Nos
• Shot Blasting Machine with 6’ Rotary Table
• Shot Blasting Room with Shot blasting Pot

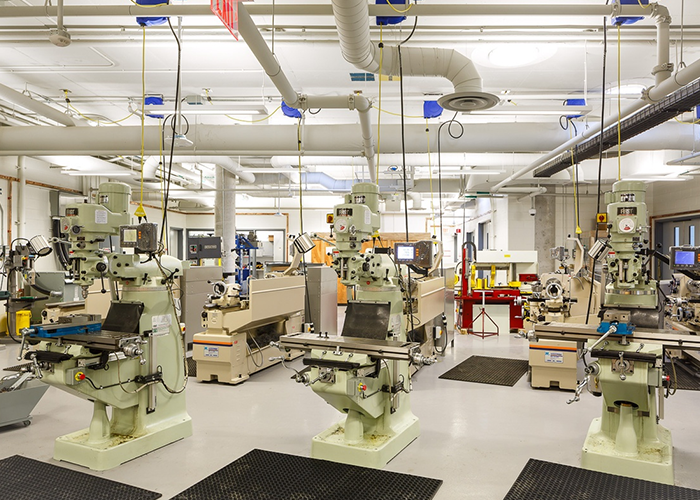

• Horizontal CNC Boring and Milling Machine with 60 ATC and BBT-50 Spindle
• Horizontal Machine Center with 60 ATC and BT-50 Spindle
• Horizontal Machine Center with 60 ATC and SK-50 Spindle
• Vertical Machining Center with 20 ATC and BT-50 Spindle

• Chemical Testing - element spectrometers
• Mechanical Testing - Universal Testing Machine (UTM), Impact analyzer with subzero bath, Fatigue and fracture testing
• Optical Testing - Carl Zeiss Metallurgical microscope with image analyzer.

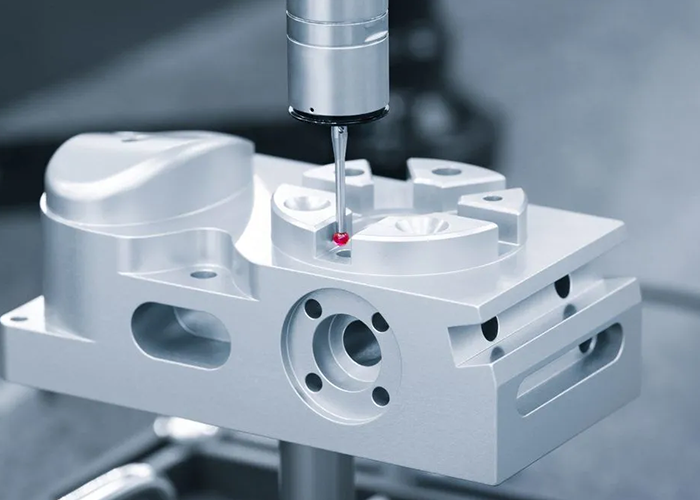

• Dimensional Testing - CMM with scanning probe, Contour profile tracer and Height gauges.
